Description

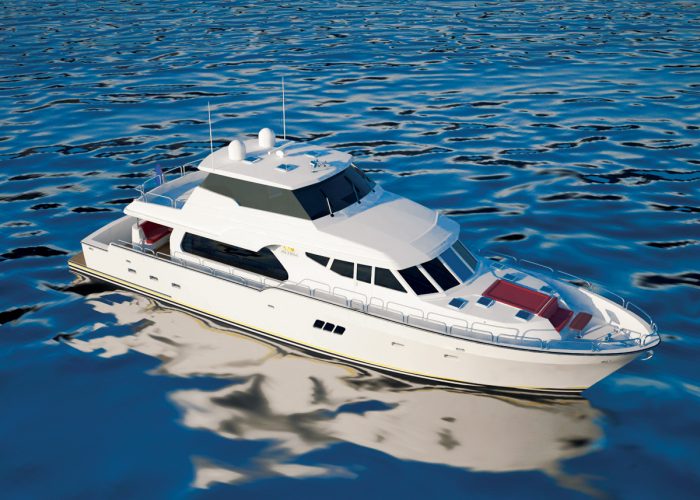

The 8020 Yachtfisher is the largest and most luxurious of the Altima line of yachts.
The Skylounge layout features a fully enclosed helm station with complete engine instrumentation, a custom stainless steering wheel and two helm chairs with stainless steel pedestals. The 8020 has more power to spare everywhere. Twin 1015-HP Caterpillar Engines, 23-KW Onan Generator with sound shield, help deliver the ultimate in marine-performance. Head and sink compartment in the Skylounge and many more features not available on other vessels of this caliber. Check out the specifications, interior, exterior as well as details in the engine room, on our website. All of this as well as the same comfort and safety of which owners have come to expect from any of our Altima Yachts.
Exterior
- Hand-laid solid fiberglass hull with Knytex
- Vinylester resin for first 5 layers of hull lay-up
- 2 layers of Kevlar from chine to chine
- Longitudinal and transverse stringer system
- Hull/deck joint through-bolted every 6”, sealed with 3M 5200 sealant, and glassed over with 3 layers of fiberglass
- Hand-laid fiberglass deck, deckhouse, and flybridge cored with high strength Divinycell foam
- Heavy duty rub rail capped with solid stainless steel trim rail
- Molded non-skid F.R.P. decks
- Water tight Bulkheads
- Interior structural component all properly bonded to the hullFly Bridge
- Complete engine instrumentation
- Hydraulic power steering
- Electronic engine controls
- F.R.P. molded helm console
- Curved stairway from cockpit to flybridge
- Stainless steel steering wheel
- Flybridge seating with storage
- Flybridge wet bar with sink
- U-Line refrigerator/freezer
- Jennair-BBQ grill
- F.R.P. folding radar arch
- Flybridge F.R.P. table
- Plexiglas venturi with stainless steel frame
- Buell Air horns
- Search light
- Electronic engine controls
- Hydraulic power steering
- Two helm chairs with stainless steel pedestals
- Complete engine instrumentation
- System indicator panel
- Frameless windows
- Custom steering wheel
- Water and fuel tank gauges
- Compass
- 3 windshield wipers with washers
- Interior stairway leading to Skylounge
- Exterior stairway leading to bridge
- L-shape settee with leather upholstery and coffee table with burl wood table top 30” LCD TV with electric TV lift
- Sound system and CD player
- Wet bar with ice maker
- Head and sink compartment
- Storage cabinets
Interior
Accommodations and Interior
- Cherry wood (Makore) interior
- High gloss finish
- Hunter Douglas mini blinds in salon and galley
- Burl wood inlay in selected areas
- Burl wood table top and counter top in selected areas
- Halogen lights throughout
- Rope lighting throughout
- Removable padded soft vinyl headliners throughout
- Push/Release type latches for cabinets and drawers

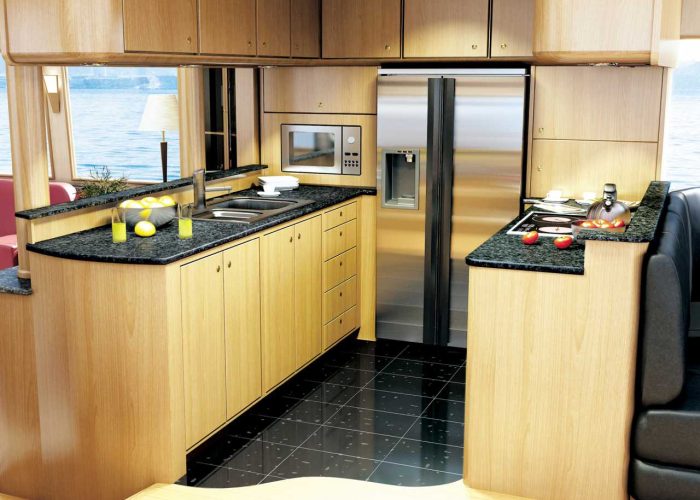

Galley and Dinette
- Stainless steel aircraft style doors at port and starboard side
- Free standing dining table with 6 chairs
- Granite counter top with large sink
- GE refrigerator/freezer with ice & water dispenser
- GE electric cook top
- GE oven
- Convection-Microwave
- Trash compactor
- Dishwasher
- Quality single lever faucet
- Garbage Disposal
- Galley exhaust blower
- Hardwood floors in dinette
- Granite floors in galley
- GFI outlets
- Island queen size berth with hinged top with drawers or lockers under
- Cedar lined hanging lockers
- Built in 20” LCD TV
- AM/FM Radio and DVD player
- Halogen overhead lighting with dimmer controls
- Double Opening S/S hatch
Forward VIP Head
- F.R.P. stall shower
- Head Hunter head
- Delta faucets
- Granite counter tops
- Granite floor
- Halogen overhead lights
- GFI outlets
- Exhaust fans
- Double opening S/S hatch
Starboard Guest Staterooms
- Opening S/S port lights
- Built in 15” LCD TV
- AM/FM Radio and DVD player
- Cedar lined hanging locker
- Halogen overhead lighting with dimmer controls
- Opening S/S port lights
Crew Quarters
- Starboard – Double Bunks
- Portside – Double berth
- Air conditioning system
- Water-tight aircraft style door in transom
- Drawers and hanging lockers
- Toilet room with granite countertop, “Head Hunter” head
- Separate shower room with granite floor
- Refrigerator/Freezer
- Microwave Oven
- 15” TV
- Reading lights
- Work bench
- Combo Washer and Dryer
Salon
- Stainless steel aft sliding door
- Frameless windows in salon
- Starboard side built in L-settee with leather upholstery
- Starboard side hi-low coffee table with burl top
- Two Portside arm chairs with leather upholstery
- Cabinet for entertainment system
- 42” LCD TV
- Bose surround sound system with DVD and CD player. Both Salon and Cockpit
- Salon overhead decorative redwood burl ceiling treatment
- Halogen overhead lighting with dimmer control
- Wine cooler
- Day head – Starboard side
Master Stateroom
- King size bed with drawers and storage under in master stateroom
- Overhead decorative redwood burl ceiling treatment
- Built in 26” LCD TV
- DVD and surround sound system
- Cedar lined hanging lockers
- Built in upholstered seat
- Bureau and vanity cabinets
- Halogen overhead lighting with dimmer control
- Opening S/S port lights
- Rope lighting
- Safety escape hatch at overhead
Master Stateroom Private Head
- Head Hunter Head
- Delta faucets
- Granite counter tops
- Granite floor
- Stall shower or whirlpool tub
- Halogen overhead lights
- GFI outlets
- Exhaust fans
- Opening S/S port lights
Port Guest Staterooms
- Two single berths
- Built in 15” LCD TV
- AM/FM Radio and DVD player
- Cedar lined hanging locker
- Halogen overhead lighting with dimmer controls
- Opening S/S port lights
Guest Heads
- F.R.P. stall shower
- Head Hunter Head
- Granite countertop
- Granite floor
- Halogen overhead lights
- GFI outlets
- Exhaust fans
- Opening S/S port lights
Cockpit
- Transom doors
- Stainless Steel swim ladder
- Hot and cold shower unit
- Engine room access from crew quarters
Specifications
Length Overall
Beam
Full Load Displacement
Freeboard Aft
Dry Weight
Fuel Capacity
Waste Water Capacity
Staterooms/Berths
Heads
Generators
74′ 0″ (22.56 m
20′ 0″ (6.1 m)
123 lbs (56 kg)
6′ 7″ (2.01 m)
118 lbs (54 kg)
2,000 Gal (7,571 L)
150 Gal (568 L)
-/4.00
4
2 ONAN with sound shield 21.5W, 17KW
Fresh Water Capacity
Grey Water Capacity
5′ 1″ (1.55 m)
9′ 0″ (2.74 m)
–
20′ 6″ (6.25 m)
300 Gal (1,136 L)
–
2.00
CAT 865HP C-15 ACERT
Mechanical
Electrical System
ONAN 23 KW/60 HZ generator with sound shield
(2) 75′ Glendinning Cable master
(2) Newmar 50 Amp battery charger
Battery selection switch
Complete AC/DC breaker/distribution panel
Quality AC and DC lighting throughout
Inverter 4.0 KW with remote panel
Shore power selection switch
Six 200 Amp heavy duty AGM batteries w/box for house system
Two 200 Amp heavy duty AGM batteries w/box for engine starting
Two 200 Amp heavy duty AGM batteries w/box for windlass and bow thruster
One 120 Amp heavy duty AGM battery w/box for generator starting
120V outlets throughout
Navigation lights
Bonded electrical system
Color coded wiring system
AFI electric air
General Equipment and Other Features
Chilled-water reverse cycle air conditioning system for whole boat
Wesmar RS700 Stabilizer system
Side Power 20 HP Bow Thruster
Maxwell VWC 3500 lbs windlass with 3 station controls
100 lbs anchor and 275′ anchor chain
Washer and Dryer
(4) Video camera with (2) monitors for engine room and aft deck
Central vacuum system
Trim tabs
Deck wash down at forward and aft decks
Dockside water pressure connection
#316 grade stainless steel for mooring cleats, chocks, anchor roller, handrails, and stanchions
TV, phone, and water inlets
Stainless steel portholes
Coast Guard safety package
Engine Room
Twin 1015 HP Caterpillar C-18 Acert Engines
Engine room lead foam sound insulation
Engine room bulkhead insulated with extra foam sound insulation
Par engine room blowers
Fiberglass exhaust mufflers
Under water exhaust system with bypass to transom
Dripless packing glands
Stainless steel shafts and 4 blades precision propellers
Stainless steel water tanks
Stainless steel rudders and rudder posts
Racor Dual 1000FG fuel filters for each engine
Pressured fresh water system
Seacocks and sea strainers on engine raw water intakes
F.R.P. fuel tanks
Engine room AC and DC lights
Engine oil changing system
Engine shut down
Engine room fire extinguisher
Color coded copper fuel lines
Color coded copper water lines
Color coded hydraulic fluid lines
Johnson automatic bilge pumps
High water bilge alarm
White PU painted bilge
F.R.P. diamond plate floors
Holding tank with macerator pump plumbed for deck side or overboard discharge
30 gallon water heater with heat exchanger
Work bench
Fresh water outlet
3 F.R.P. fuel tanks – 2 forward, 1 centre – Day Tank
